Product Overview
The Dhara Vertical Drying Range Machine sets a new standard in high-performance textile drying, combining intelligent automation, precision contact-drying technology, and a space-efficient vertical design. Engineered for continuous and standalone operation, the system delivers uniform heat transfer, controlled moisture removal, and gentle fabric handling—even at high production speeds.
Designed for modern finishing plants, the Dhara drying range ensures wrinkle-free fabric passage, minimal tension, rapid heat-up, and consistently superior finish quality across woven, knitted, technical, and non-woven textiles.
Engineered Performance Specifications
- Working Width : 1200 mm to 4000 mm
- Cylinder Diameter Options : 400 MM | 570 mm | 600 mm | 760 mm | 800 mm
- Steam Operating Pressure : Up to 5 Bar
- Maximum Design Temperature : 165°C
- Production Speed : 10 m/min to 150 m/min
- Cylinder Arrangement per Stack : 4 / 6 / 8 / 10 / 12
- Stack Construction : Heavy-duty MS or SS fabricated structure
- Cooling Cylinder Designs:
- Single-shell type
- Double-shell jacketed type
- Spiral-flow high-efficiency cooling cylinders
Key Performance Advantages
- Long-life, industrial-grade construction with minimal maintenance
- Extremely low energy and steam consumption
- Fast start-up with rapid heating response
- Operator-friendly PLC-based control interface
- Low-tension, fabric-safe drying throughout the process
- Wrinkle-free fabric movement across all drying zones
- Excellent temperature uniformity across the full fabric width
- Consistently high and reproducible product quality
Advanced Drive & Tension Management Technology
The Dhara Vertical Drying Range is equipped with an advanced direct-drive system, ensuring precise synchronization between fabric behavior and cylinder rotation.
- Direct cylinder drive using frequency-controlled geared motors
- No intermediate belts or mechanical transmission elements
- Automatic speed compensation for fabric shrinkage during drying
- Preset fabric tension limits are never exceeded
- Smooth operation with extremely low maintenance requirements
High-Precision Drying Cylinders
Dhara drying cylinders are engineered using thin-walled precision manufacturing technology to ensure optimal heat transfer, smooth fabric contact, and long operational life.
- Stainless steel cylinder shells with superior corrosion resistance
- Precision balancing for minimal radial run-out
- High-quality welding and surface finishing
- Surface-belt grinding for enhanced fabric contact
- Premium Teflon-coated surfaces for non-stick drying and easy cleaning
Ready to start your next project?
Intelligent Steam & Moisture Control System
Segmented Steam Pressure Regulation
- Independent steam control for individual cylinder groups
- Fabric-specific thermal profiling
- Optimized drying balance and reduced energy usage
Centralized Steam Management
- Stable, uniform heat distribution across the entire drying range
- Ideal for high-speed continuous finishing lines
Real-Time Residual Moisture Control
- Inline moisture sensors monitor fabric wetness continuously
- Automatic steam adjustment prevents over-drying
- Preserves fabric softness, strength, and appearance
Closed-Loop Automation
- Continuous feedback between sensors, controllers, and steam valves
- Self-regulating process control
- Enhanced productivity and consistent output quality

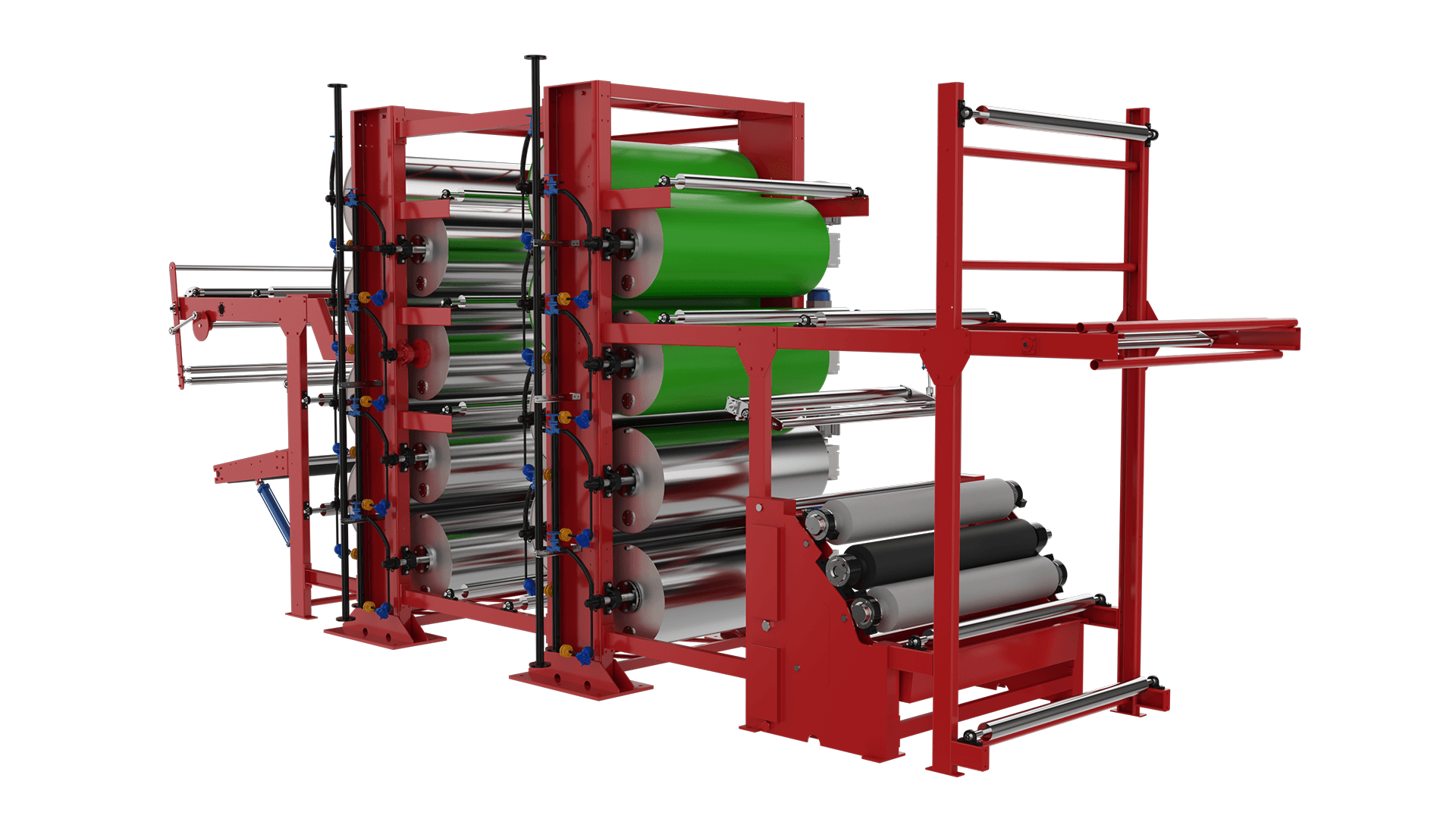

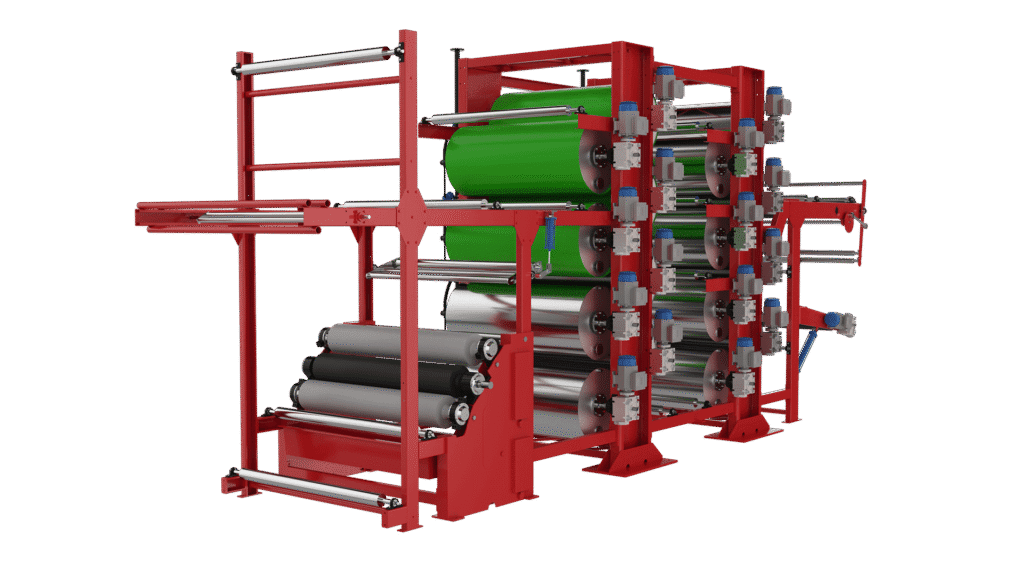

Modular Vertical Configuration
- Vertical layout with 1 to 6 stands
- 4 to 12 drying cylinders per stand
- Configurable for single-sided or double-sided contact drying
- Suitable for continuous production or standalone operation
Flexible Customization & Process Integration
- Selective cylinder or zone shut-off for energy optimization
- Temperature control per stack or per cylinder group
- Steam pressure reduction and safety control systems
- Compensators between stacks for smooth fabric transfer
- Choice of direct drive or alternative belt drive system
- Integrated or standalone cooling cylinders
- Feeding-in scaffold with batching, plaiting, or surface winder units
- Exhaust hood with axial fan or fully insulated enclosure
- Synchronization with finishing machines or independent operation
- Optional 2-bowl or 3-bowl padding mangle
Start your precision manufacturing journey
Applications & Process Benefits
The Dhara Vertical Drying Range Machine provides an energy-efficient and highly reliable contact-drying solution for textile finishing. It ensures gentle, low-tension, and reproducible drying conditions, making it ideal for both intermediate and final drying stages.
Suitable for:
- Woven and knitted fabrics
- Technical and industrial textiles
- Non-woven and filament materials
- High-quality finishing lines requiring precision and consistency
The Dhara Advantage
Experience next-generation textile drying driven by intelligent automation, precision contact drying, and premium engineering. The Dhara Vertical Drying Range Machine is a future-ready investment for manufacturers seeking higher efficiency, flawless fabric quality, and long-term operational excellence.
Dhara — Engineering Precision. Delivering Perfection.
