Product Overview

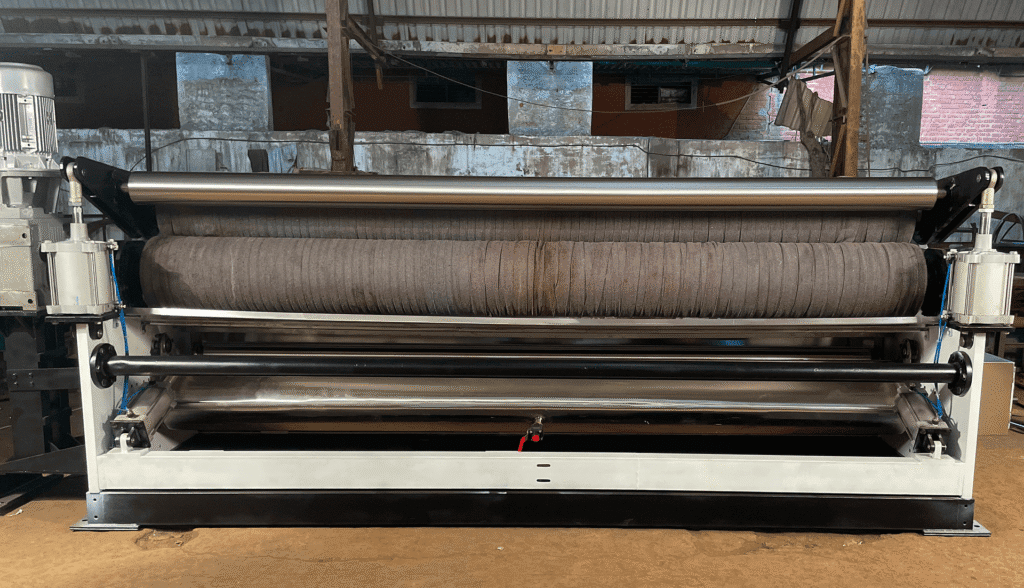

The Dhara Padder Unit is an advanced padding solution designed for precise chemical application, controlled dewatering, and consistent finishing quality. Built with heavy-duty mechanical construction and intelligent process control, it ensures uniform liquor pick-up, stable fabric handling, and repeatable results across a wide range of textile applications.
Now enhanced with an integrated high-efficiency chemical filtration system, the Dhara Padder Unit delivers cleaner operation, reduced chemical wastage, and improved process stability, making it ideal for modern, export-oriented textile finishing plants.
Advanced Chemical Filtration System
- Continuous chemical bath filtration during operation
- Maintains chemical purity and bath consistency
- Reduces re-dosing and chemical wastage
- Extends bath life and lowers operating costs
- Ensures stable processing temperatures
- Improves fabric-to-fabric consistency
Padder Configurations
Dhara Two Bowl Padder
Compact and efficient design for standard finishing operations. Ideal for light to medium squeezing applications, offering precise chemical application with gentle fabric handling.
Dhara Three Bowl Padder
Designed for high-throughput and multi-stage finishing lines. Provides enhanced pressure uniformity and improved liquor penetration for demanding processes.
Squeezing Configuration Comparison
LOW vs HIGH SQUEEZING OPTIONS
| Feature | Low Squeezing Option | High Squeezing Option |
|---|---|---|
| Fabric Type | Delicate / Lightweight | Medium to Heavy Fabrics |
| Mechanical Stress | Very Low | High & Controlled |
| Chemical Application | Precision pick-up | Maximum dewatering |
| Squeezing System | Standard nip control | Swimming rolls + nip control |
| Drying Load | Moderate | Significantly reduced |
| Energy Efficiency | Standard | High |
| Typical Use | Fine knits, sensitive fabrics | High-speed finishing lines |
Key Engineering Features
- Integrated Filtration Unit – cleaner bath, lower chemical consumption
- Thermal Stability System – consistent bath temperature
- Adjustable Nip Pressure – up to 50 N/mm
- PLC-Controlled Operation – accurate and repeatable process control
- Available Working Widths – 1400 mm to 3600 mm
- Durable Roller Surfaces – special coatings for long service life
Technical Specifications
Dhara Two Bowl Padder
| Parameter | Specification |
|---|---|
| Application | Dewatering & chemical finishing |
| Number of Bowls | 2 |
| Max. Squeezing Pressure | Up to 12 Tons |
| Nip Pressure | Up to 50 N/mm |
| Roller Design | Crowned & counter-pressure rollers |
| Rubber Hardness | As per fabric & application |
| Fabric Expansion | Bow roller (curved bar expander) |
| Curl Control | Driven scroll rollers |
| Trough Types | Sliding / Tilting / Lowering |
| Immersion Path | Standard / Long |
| Trough Construction | Standard / Jacketed |
| Temperature Control | Optional |
| Control System | PLC with Touch Screen |
| Frame Material | MS / Optional SS 304 |
| Working Width | 1400 – 3600 mm |
Dhara Three Bowl Padder
| Parameter | Specification |
|---|---|
| Application | Advanced finishing & dewatering |
| Number of Bowls | 3 |
| Max. Squeezing Pressure | Up to 15 Tons |
| Nip Pressure | Up to 50 N/mm |
| Roller Design | Crowned & counter-pressure rollers |
| Rubber Hardness | As per fabric & application |
| Fabric Expansion | Bow roller (curved bar expander) |
| Trough Operation | Lifting & Lowering |
| Speed Synchronization | Pneumatic compensator / Load cell |
| Chemical Control | Optional level & pH control |
| Dosing System | Optional tank with stirrer & pump |
| Control System | PLC with Touch Screen |
| Frame Material | MS / Optional SS 304 / SS 316 |
| Working Width | 1400 – 3800 mm |
Applications
- Dyeing pre-treatment
- Chemical finishing
- Resin & softener application
- Moisture control and dewatering
- Continuous textile finishing lines
Dhara Advantage
The Dhara Padder Unit combines intelligent filtration, flexible squeezing technology, and precision engineering to deliver consistent quality, lower operating costs, and long-term reliability—perfectly aligned with the demands of modern textile finishing.
Dhara — Intelligent Padding. Cleaner Processes. Superior Results.
