Product Overview

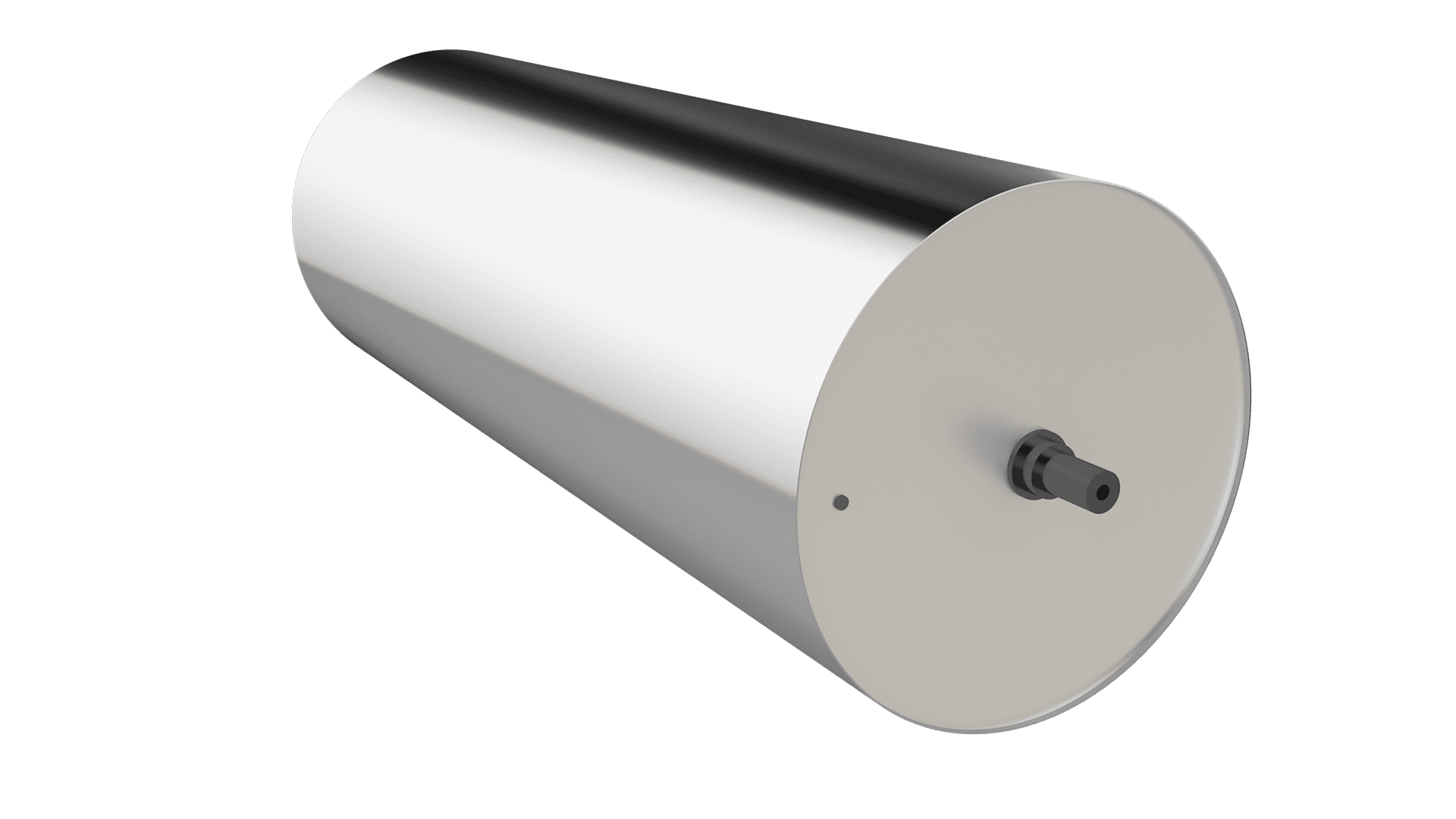

Dhara Jacketed Heating & Cooling Cylinders are designed for processes requiring accurate temperature regulation, uniform heat distribution, and controlled cooling performance. The jacketed construction allows efficient circulation of heating or cooling media, ensuring stable surface temperatures and consistent process conditions.
Manufactured with robust inner and outer shell configurations, these cylinders provide safe pressure operation, efficient thermal exchange, and reliable long-term performance, making them suitable for continuous industrial environments.
Engineering Features
- Jacketed construction for uniform heating or cooling

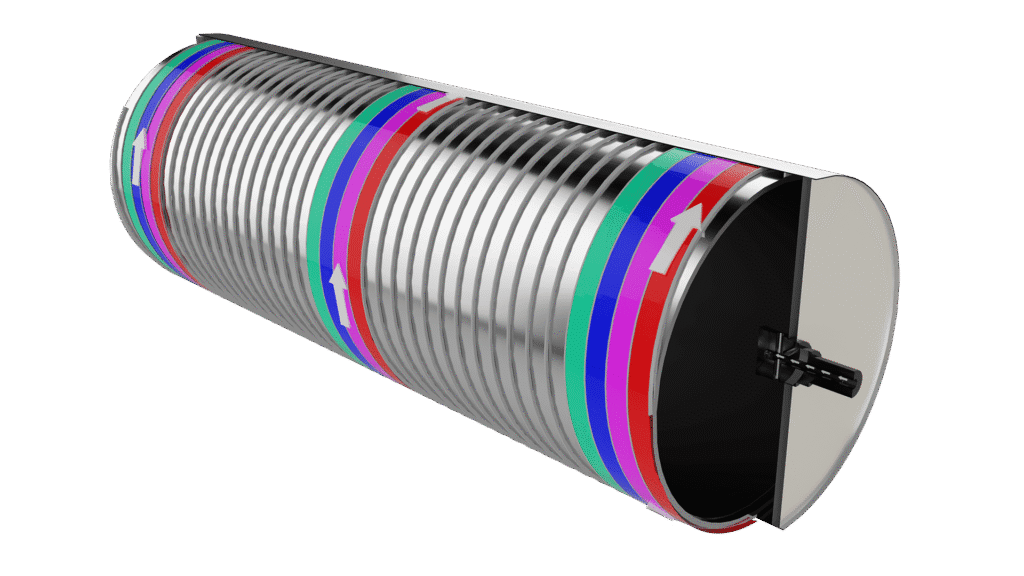

- Optimized internal flow design for efficient thermal transfer
- Stable pressure performance during continuous operation
- Polished or Teflon-coated surfaces for easy maintenance
- Compatible with steam, hot water, or cooling media
- Designed for seamless integration into continuous processing lines
Technical Specifications
| Parameter | Specification |
|---|---|
| Cylinder Diameter Range | 400 mm – 800 mm |
| Working Width Range | 1000 mm – 4000 mm |
| Hydraulic Test Pressure | 3 Bar – 5 Bar |
| Operating Pressure | 1 Bar – 3 Bar |
| Inner Shell Thickness | 5 mm – 12 mm (SS / MS) |
| Outer Shell Thickness | 2 mm – 4 mm |
| Surface Finish | Polished or Teflon Coated |
Typical Applications
- Cooling zones in drying ranges
- Heat stabilization and conditioning sections
- Post-drying temperature control
- Technical textile and industrial fabric processing
Manufacturing & Compliance
Dhara Jacketed Cylinders are manufactured using certified raw materials, qualified welding procedures, and controlled inspection processes. Each unit is pressure tested and verified to ensure safe operation, dimensional accuracy, and process reliability.
Dhara — Advanced Thermal Engineering for Precision Textile Processing.
