Product Overview

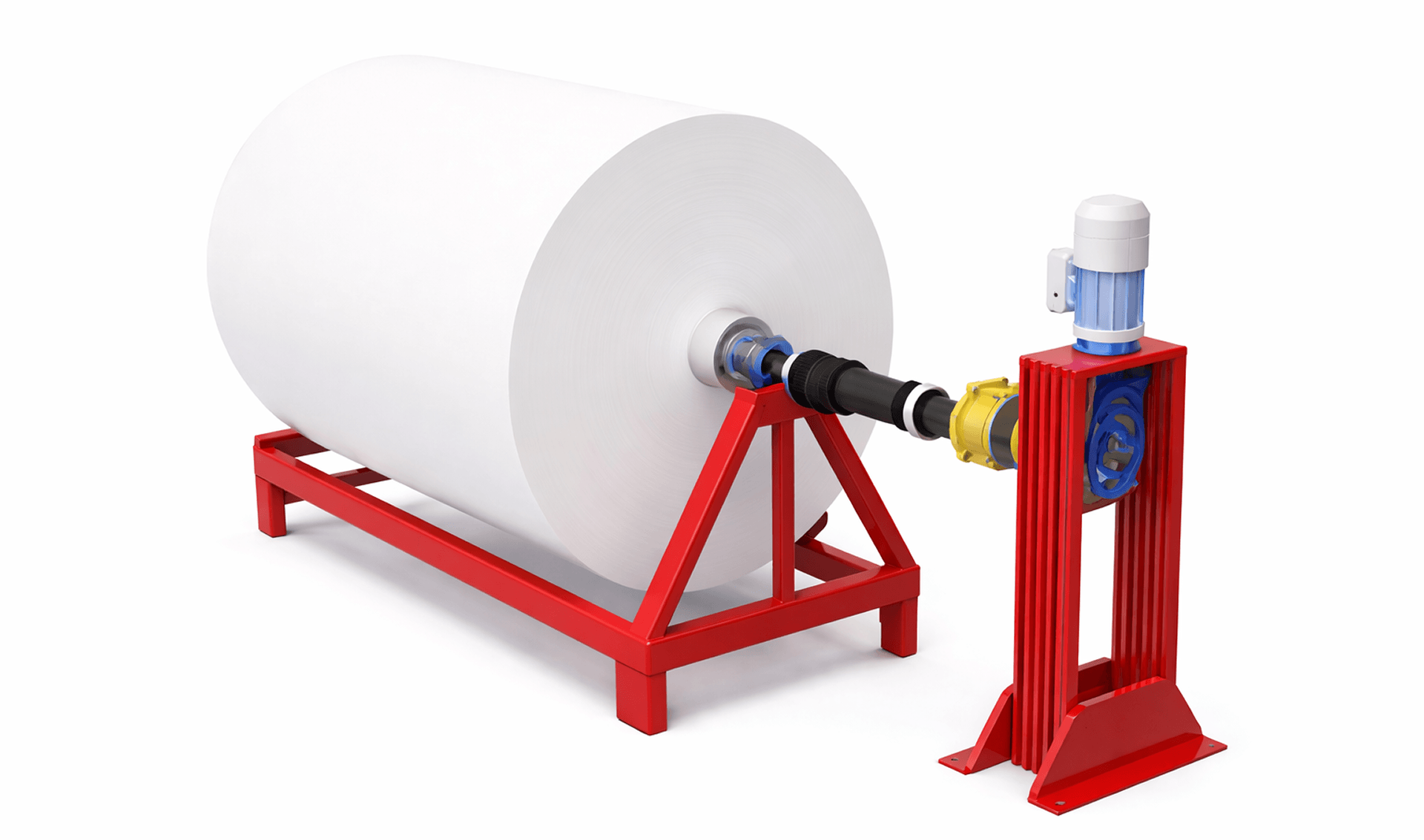

The Fabric Batching & Vertical Drive System is designed for controlled batching, rotation, and handling of large fabric rolls in textile processing environments. The system integrates a Heavy Duty A-Frame Fabric Batching Trolley with SS-316 Cladded Roll and a Motorized Vertical Drive Column Assembly, enabling smooth roll rotation and stable fabric winding operations.
Engineered for textile dyeing units, finishing plants, inspection departments, and processing lines, the system ensures uniform roll rotation, safe handling of large batches, and reliable torque transmission during fabric batching and re-rolling processes.
The equipment is constructed with heavy fabricated steel structures, precision shaft alignment, and industrial-grade drive components, providing stable operation, long service life, and minimal maintenance requirements in demanding industrial environments.
Applications
- Fabric batching during textile processing
- Fabric roll handling in dyeing and finishing plants
- Batch rotation for inspection and reprocessing
- Fabric roll preparation for downstream processes
- Controlled roll winding and unwinding operations
- Textile production and inspection departments
Machine Configuration
Heavy Duty A-Frame Batching Trolley
The batching trolley is designed with a robust A-frame structure capable of supporting large diameter fabric rolls while maintaining stability during rotation and movement.
Structural Frame
- Heavy duty fabricated Mild Steel A-Frame construction
- Structural members made from 100 mm × 50 mm MS channels
- Reinforced support channels at critical load points
- Rigid base frame for stability during operation
- Industrial protective coating for corrosion resistance
Roll Assembly
- Roll Diameter: 200.MM / 220.MM
- Face Length: 1400.MM TO 3800.MM
- Roll Surface Cladding: SS-316 Stainless Steel Sheet 2.0.MM / 2.5.MM THICKNNSS
- Precision-machined roll surface for smooth fabric contact
Bearing Arrangement
- Bearing Type: UCP 210 Pillow Block Bearings
- Heavy duty bearing housing with grease lubrication
- Designed for continuous load rotation
Wheel & Mobility System
- Wheel Size: 12” × 3” Heavy Duty Industrial Wheels
- Wheel Type: UHMW Bearing Type Wheels
- Load Capacity: Suitable for heavy fabric rolls
- Two fixed heavy channel support legs for stationary stabilityZ
Handling Features
- One side push handle for manual manoeuvring
- One side pull handle for positioning
- Rotating couple adapter for connection with drive column
- Smooth roll rotation during batching operation
Ready to start your next project?
Vertical Drive Column Assembly
The Vertical Drive Column Assembly provides controlled mechanical rotation to the batching roll through a motorized drive system.
Drive System
- Motor Power: 5 HP
- Motor Type: Industrial Duty Induction Motor
- Power Supply: 3 Phase, 380 Volt, 60 Hz
- Motor Duty: Continuous operation
Gearbox
- Heavy duty industrial reduction gearbox
- Designed for continuous torque transmission
- Low noise and high efficiency gear system
Transmission Mechanism
- Precision Universal Joint Coupling
- Flexible torque transmission between drive and roll shaft
- Compensation for minor misalignment
Structural Column
- Heavy fabricated Mild Steel vertical support column
- Precision machined shaft alignment system
- Rigid construction to eliminate vibration
Mounting System
- Heavy duty floor mounted base frame
- Rigid mounting plate for motor and gearbox
- Designed for vibration-free operation
Surface Finish
- Industrial protective coating
- Corrosion resistant finish suitable for textile environments
Technical Parameters
- Maximum Fabric Roll Width: Up to 3600.MM
- Roll Diameter Capacity: Customizable as per process requirement
- Roll Support Shaft Diameter: 60 mm
- Roll Surface Material: SS-316 Stainless Steel Cladding
- Drive Power: 5 HP
- Power Supply: 3 Phase / 380 V / 60 Hz
- Bearing Type: UCP 210 Pillow Block Bearings
- Wheel Size: 12” × 3” Industrial Wheels
- Frame Material: Heavy Fabricated Mild Steel
- Surface Finish: Industrial Grey Protective Coating
Control & Operation
- Motor-driven roll rotation
- Smooth torque transmission through universal joint
- Stable roll rotation for batching operations
- Manual trolley movement and positioning
- Low vibration and noise operation
Ready to start your next project?
Engineering Advantages
- Stable support for large textile rolls
- Smooth and controlled roll rotation
- Corrosion resistant SS-316 roll surface
- Heavy duty industrial structural design
- Reliable torque transmission through universal coupling
- Easy roll handling and mobility
- Suitable for continuous textile processing environments
- Low maintenance and long operational life
Industries Served
- Textile Dyeing & Finishing Plants
- Fabric Processing Units
- Textile Inspection Departments
- Garment Manufacturing Facilities
- Fabric Export Houses
- Technical Textile Manufacturers
Engineered for Strength. Designed for Precision. Built for Industrial Reliability.
